Vehicle video inspection system
Product Categories：Vehicle detection system
Add Time：2022/7/11 10:37:58
Support Hotline：
0755-27955177
- Product Description
項目內容Project content

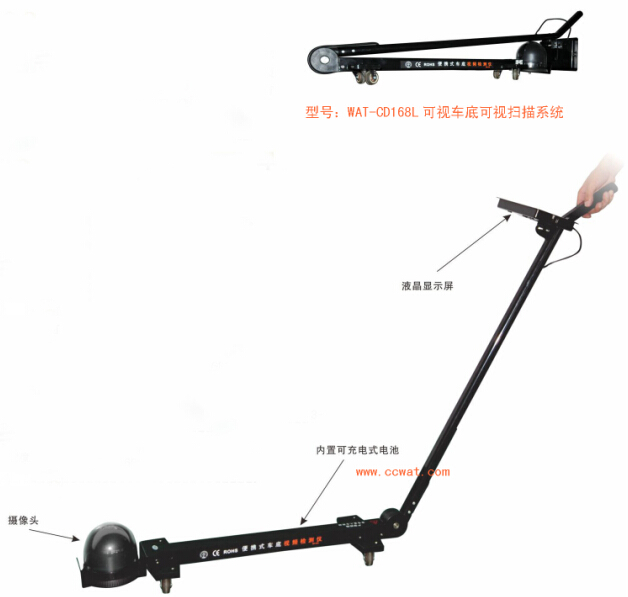

WAT-CD168L vehicle video inspection system
Four wheel drive HD display waterproof cover
Soft start power, camera 130 degrees before and after electric control, planar 360 degrees electric rotation, wireless remote control,
Note: this section is configured with a storage video. (memory card)
Work energy special point:
1, the use of high capacity lithium battery power supply, with the use of a long time, and the volume of small and portable;
2, using high resolution 7 inch LCD display, power consumption is low, effective work, time is long;
3, the use of micro wide angle camera, a wider field of vision;
4, based on the excellent design concept, the system uses two segments of the folding structure, the operation is very easy.
Technical parameters:
System weight: 4.5Kg
Built in rechargeable battery: battery capacity: 2200mAH
Output voltage: 9 ~ 12.6V
Battery pack alarm: battery pack voltage is lower than 10V, buzzer
Continuous working time: about 7H (hours)
Working temperature: 0 ~ 60
Camera rotation angle: 130 degrees
Camera type: Micro wide-angle, with infrared night vision
Display: 7 inch color LCD display
Aluminum alloy packaging box: convenient logistics and safe delivery of high-end atmosphere.
Should use field:
This product is applicable to checking cars, machines, warehouses, schools, factory equipment or other difficult to direct viewing area is the ideal inspection mirror, it can used for airport security, stop for inspection, inspection of military region, personal private car inspection etc.. We have provided the corresponding models for the multi regional sports meeting, the important meeting, the local police station, the senior hotel, the large-scale factory.
